The ER Diagrams tool was designed to provide QuickBase application administrators with the ability to

easily generate Entity Relationship diagrams.  The ability to create of visual representation of your applications

tables and relationships is something that database administrators expect from a database platform.

Some key features include:



• Create as many diagrams as you want, create sub diagrams that make sense

                   for a specific grouping of tables and relationships.

• Include or exclude primary and foreign keys in the diagrams

• Choose to save the diagrams in a file attachment field in your QuickBase

                   application.  Save it in jpg or pdf format.










Here is a sample from the Project Manager Plus application:

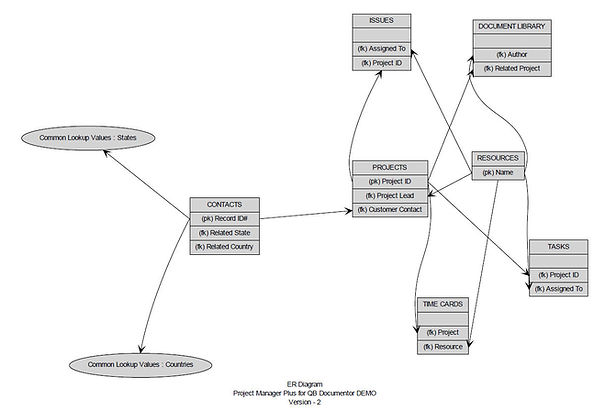

Diagram without the Primary/Foreign keys
